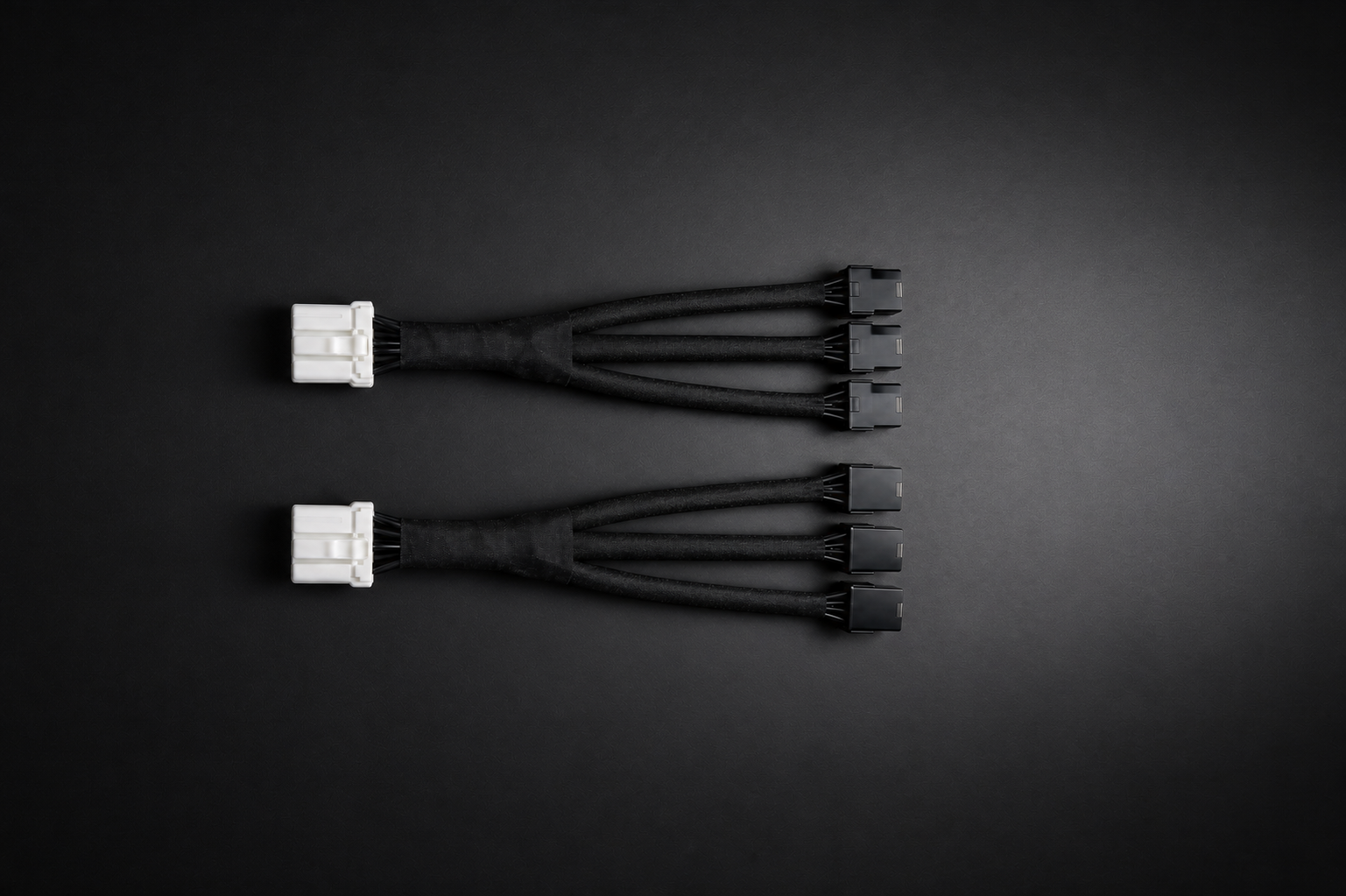

70 Series 8 Pin to 3x 8 Pin Power Cable
High-Current Power Distribution, Engineered for Stability
As power demand continues to increase in modern systems, ensuring stable and efficient power delivery is more critical than ever—especially in GPU platforms, AI servers, and industrial computing systems.
The 8 pin to 3x 8 pin power cable from our 70 Series is designed to provide a reliable 1-to-3 power distribution solution, combining strong electrical performance with robust mechanical design.
⚡ Product Configuration
- Input: 1 × 8-pin
- Output: 3 × 8-pin
- Cable Length: 190 ± 10 mm
This design enables efficient power routing from a single source to multiple components, making the 8 pin to 3x 8 pin power cable ideal for systems with limited space and complex power requirements.
📊 Key Specifications
To support high-performance applications, this cable is engineered with the following specifications:
- Rated Voltage & Current:
12V / 9.5A per pin - Wire Gauge:
16AWG (power) / 18AWG (ground) - Contact Resistance:
Initial ≤ 5mΩ / pin
Final ≤ 10mΩ / pin - Insulation Resistance:
≥ 100MΩ - Operating Temperature:
-30°C to 105°C - Mechanical Performance:
- Mating cycles: 30
- Locking strength: ≥ 98N
🔍 Engineering Highlights
Designed for High Current Stability
The use of 16AWG conductors helps reduce electrical resistance, minimizing voltage drop and heat generation—key factors in high-load systems where the 8 pin to 3x 8 pin power cable is commonly used.
Low Contact Resistance = Better Reliability
Maintaining ≤10mΩ contact resistance helps prevent localized heating at the connector interface, ensuring long-term stability during continuous operation.
Precision Crimping for Secure Conductivity
The cable uses copper crimp termination, providing:
- Strong mechanical bonding
- Stable electrical performance
- Improved resistance to vibration and fatigue
Built for Harsh Environments
With a wide operating temperature range and reinforced cable structure, this cable performs reliably in both consumer and industrial environments.
🚀 Applications
This 8 pin to 3x 8 pin power cable is widely used in systems requiring stable multi-channel power distribution:
- High-performance GPU systems
- AI servers & data centers
- Industrial PCs & embedded systems
- Power supply (PSU) integration
🔧 Customization Available
We support flexible customization based on your application needs:
- Cable length & branching design
- Connector types and pin configuration
- Wire gauge optimization
- Labeling, bundling, and overmolding
🏢 About Walta Electronic
Walta Electronic specializes in high-quality connectivity solutions, providing a full range of USB Type-C, HDMI, DisplayPort connectors, Board-to-Board connectors, power connectors, as well as custom cables and wire harness assemblies. With precision manufacturing and advanced R&D, we serve premium applications across consumer electronics, medical technology, industrial control, Telecommunications, and automotive electronics — helping our partners stay competitive with performance they can trust.
👉 Follow us on LinkedIn for the latest product updates and connector insights.
70 Series 8 Pin 轉 3 組 8 Pin 電源線
高電流電源分配，為穩定而設計
隨著現代系統對功率需求持續提升，穩定且高效率的電源傳輸變得更加關鍵，特別是在 GPU 平台、AI 伺服器與工業電腦等應用中。
本款 8 pin 轉 3x 8 pin 電源線（8 pin to 3x 8 pin power cable）專為高負載應用設計，提供可靠的 1-to-3 電源分配方案，結合優異的電氣性能與穩固的機構結構。
⚡ 產品配置
- 輸入端： 1 × 8-pin
- 輸出端： 3 × 8-pin
- 線長： 190 ± 10 mm
此設計可將單一電源有效分配至多個元件，使 8 pin 轉 3x 8 pin 電源線 特別適用於空間受限且電源配置複雜的系統。
📊 主要規格
為支援高效能應用，本產品具備以下規格：
- 額定電壓與電流：
12V / 每 pin 9.5A - 線材規格：
16AWG（電源）/ 18AWG（接地） - 接觸電阻：
初始 ≤ 5mΩ / pin
最終 ≤ 10mΩ / pin - 絕緣電阻：
≥ 100MΩ - 工作溫度範圍：
-30°C 至 105°C - 機械性能：
插拔壽命：30 次
鎖扣強度：≥ 98N
🔍 工程設計重點
高電流穩定設計
採用 16AWG 導體，有效降低電阻並減少壓降與發熱問題，特別適合高負載環境下使用的 8 pin 轉 3x 8 pin 電源線。
低接觸電阻，提升可靠性
維持 ≤10mΩ 接觸電阻，有助於避免接點局部過熱，確保長時間運作下的穩定性。
精密壓接，確保導電穩定
採用銅線鉚接（crimp）技術，提供：
- 穩固的機械結合
- 穩定的電氣性能
- 良好的抗震與抗疲勞特性
適用於嚴苛環境
具備寬廣的工作溫度範圍與強化線材結構，無論在消費性或工業環境中皆能維持穩定表現。
🚀 應用領域
本款 8 pin 轉 3x 8 pin 電源線 廣泛應用於需要穩定多通道電源分配的系統：
- 高效能 GPU 系統
- AI 伺服器與資料中心
- 工業電腦（IPC）與嵌入式系統
- 電源供應器（PSU）整合
特別適用於高電流、空間有限以及需維持整潔配線的系統設計。
🔧 客製化服務
我們可依您的應用需求提供彈性客製：
- 線長與分支設計
- 連接器種類與 pin 定義
- 線徑與材料優化
- 標籤、束線與包覆成型（overmolding）
🏢 關於 Walta Electronic
Walta Electronic 專注於高品質連接解決方案，產品涵蓋 USB Type-C、HDMI、DisplayPort、Board-to-Board Connectors、Power Connectors，以及 客製化線材與端子線組。我們憑藉精密製造與專業研發技術，服務應用於 Consumer Electronics、醫療科技、工業控制、Telecommunications與車用電子 等高階領域，致力於協助合作夥伴以穩定性能立足競爭市場。
👉 歡迎追蹤我們的 LinkedIn，掌握最新產品資訊與連接器趨勢觀點。
