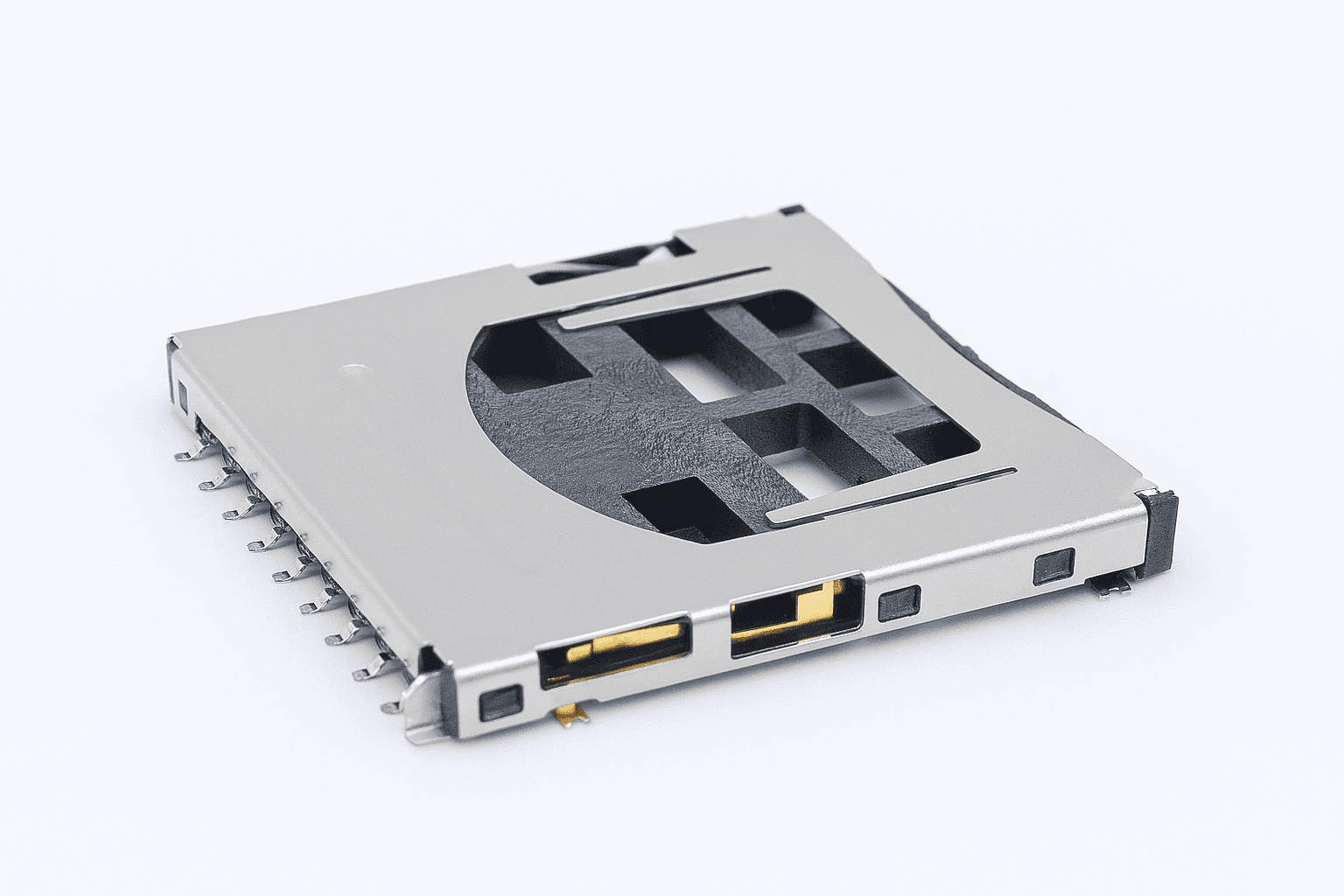

SD Card Connector – F03‑0681‑00002

In rugged environments, a stable data connection starts with the right hardware — and the F03‑0681‑00002 delivers

In every embedded system or edge device, storage is essential — not just for performance, but for reliability. Whether logging diagnostic data in a vehicle, storing image records in medical equipment, or buffering sensor readings in an industrial controller, the SD card connector plays a mission-critical role.

At Walta Electronic, we understand that what looks like a “small part” can make or break your system’s stability in the field. That’s why we developed the F03‑0681‑00002 SD Card Connector — a refined version of our earlier design (M22‑0681‑20001) with key mechanical and dimensional improvements that address the real-world challenges engineers face.

🔍 What’s new in this model?

The F03‑0681‑00002 isn’t just a rebrand — it’s a mechanical and structural upgrade built for robustness, manufacturability, and high-reliability integration.

✅ Reinforced Metal Shell

We’ve added structural ribs to the outer shield to enhance the connector’s rigidity and resistance to deformation during repeated insertions or high-vibration operation — a must in automotive and industrial environments.

✅ Controlled Frame Tolerances

Frame opening dimensions are now tightly controlled with enhanced manufacturing tolerances. This improves alignment with mating SD cards, prevents PCB stress during assembly, and supports long-term contact stability even under thermal cycling.

✅ Assembly-Ready Features

The connector is optimized for SMT processes, featuring well-defined PCB landing points and pick-and-place-friendly orientation markings. This makes it ideal for mass production environments that demand both speed and consistency.

✅ Reliable Card Retention & Insertion

The housing and contact structure are designed to ensure secure card retention and reduce the risk of intermittent contact. Engineers can expect consistent insertion/extraction force, minimizing wear over time and ensuring stable electrical connections.

🧠 Why this matters

In applications like:

  • 🏭 Factory automation: where systems log critical sensor and control data 24/7

  • 🚗 Connected vehicles: where vibration, temperature changes, and long-term exposure are the norm

  • 🏥 Medical imaging or diagnostic devices: where data loss is not an option

  • 💡 Smart IoT nodes or gateways: where data integrity must be preserved in remote or unmanned settings

…the connector’s physical and electrical reliability is not a luxury — it’s a requirement. A loose fit, inconsistent retention, or mechanical fatigue over time can lead to data loss, system failures, and costly maintenance.

🛠️ Why engineers choose F03‑0681‑00002:

Feature Benefit
Reinforced Shell Improved resistance to shock, vibration, and handling
Tight Dimensional Control Stable insertion alignment & long-term mechanical integrity
SMT Mountable Fast, repeatable production with high yield
Universal Compatibility Supports common SD card formats
Reliable Card Holding Force Ensures continuous data flow with no signal dropout

🤝 From concept to production

The F03‑0681‑00002 is more than a connector — it’s a trusted interface that ensures your system performs with confidence, even in unforgiving environments. From prototype to full-scale production, Walta supports your project with fast sampling, flexible customization, and responsive engineering assistance.

🔗 Explore the full product specs here

📩 Have technical questions or need a quote? Reach out — our team is ready to help you integrate the right solution into your system.

🏢 About Walta Electronic

Walta Electronic specializes in high-quality connectivity solutions, providing a full range of USB Type-C, HDMI, DisplayPort connectors, Board-to-Board connectors, power connectors, as well as custom cables and wire harness assemblies. With precision manufacturing and advanced R&D, we serve premium applications across consumer electronics, medical technology, industrial control, Telecommunications, and automotive electronics — helping our partners stay competitive with performance they can trust.
